Detail Information |
|||
| Dimension: | 6800mm×2500mm×3100mm | Weight: | 12000kgs With Full Load |
|---|---|---|---|
| Chassis: | 4*2 MAN | Engine Power: | 184Kw |
| Cabin: | Front Driver’s Cabin+Rear Crew Cabin, 2+6 Seats | Superstructure: | Aluminum Alloy Welded Structure |
| Liquid Tank: | 2000L Water & 200L Foam. PP Material | Water Pump: | 50L/s@10bar |
| High Light: |
184Kw Small Fire Fighting Truck, 12000kgs Fire Fighting Truck, CXFIRE Small Fire Truck |
||
Product Description
1. The Whole Fire Truck
1.1 Overall Dimension: L×W×H (mm):6800mm×2500mm×3100mm
1.2 Full Load Weight (kg): 12000 kg
1.3 Capacity of Extinguishing Agent: 2000L Water, 200L Foam
1.4 Max. Speed: 90km/h
1.5 Ratio Power: >15
1.6 Emission Standard: EURO 5
1.7 All the documents, instructions and labels are in English
2. Chassis
2.1 Manufacturer: Germany MAN
2.2 Chassis Model: TGL 12.250
2.3 Driving Manner: 4×2
2.4 Wheel Base (mm): 3600mm
2.5 Engine Model: MAN D0836LFL66
2.6 Rated Power: 184/250 (kW / hp)
2.7 Rated Torque: 1000N.m
2.18 PTO: Transmission PTO
3. Cabin and Separate crew cabin
3.1.1 Structure: 2 (original single row cabin) +5 (separate crew cabin 2+3 with 5 SCBA)
3.1.2 Interior: central control door locks, with electric heating rear view mirror, wide-angle lens and right lower view mirror, with front lower mirror, air conditioning system, car multimedia system, cigarette lighter, reading light, 100W warning light
3.1.3 Safety: 3-point seat belt with SCBA bracket
4. Pump and Pipeline System
4.1 Water Pump
4.1.1 Brand: Optional
4.1.2 Type: Optional
4.1.3 Flow Rate: 50L/s at 1.0Mpa
4.1.4 Priming Time: ≤60s
4.1.5 Suction Depth: 7m
4.1.6 Installation: Rear-mounted
4.2 Vacuum Pump
4.2.1 Type: Electric driven, 24V
4.3 Foam Proportioning Device
4.3.1 Type: Automatic
4.4 Pipeline
4.4.1 1pc water inlet from the hydrant to the pump; 1pc water inlet from tank to pump;
4.4.2 2pcs inlet from the hydrant to the tank directly with manual ball valve;
4.4.3 1pc suction inlet with valve from pump to tank;
4.4.4 2pcs pump outlets to connect the fire hose;
4.4.5 Drain Pipeline: In order to protect water pump, drain ball valve is mounted in the pipeline.
4.5 Control System
4.5.1 With integrated operation system
4.5.2 Panel Controls: Vacuum gauge, Pressure gauge, Tachometer, Level indicator, etc
5. Liquid Tank
5.1 Capacity: Water tank 2000kg , Foam tank 200kg
5.2 Material: Polymer composite PP-C and never in rust
5.3 Installation method: liner type
6. Compartment
6.1 Material: High-strength aluminum alloy profiles.
6.2 Model: Integrated with cabin
6.3 Structure: All-aluminum frame welded structure, the outer is an aluminum alloy plate; the interior is made of aluminum alloy profiles; the interior panel and the bottom panel are aluminum alloy panels.
6.4 Roller shutter door: Light high-quality aluminum alloy, large-format shutter door. 4pcs on the both sides of compartment, and One on the rear side, light and reliable.
6.5 Stairs: On the both sides of compartment, aluminum alloy plate with integral structure, and adopting anti-slip design on the pedals.
6.6 One ladder to the roof is mounted on the rear side of the compartment.
6.7 Roof protection:Anti-slip treatment, and water flow down naturally.

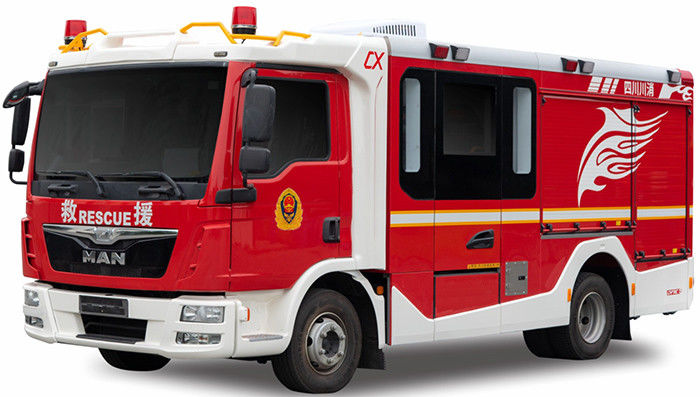

7. Reference Pictures
