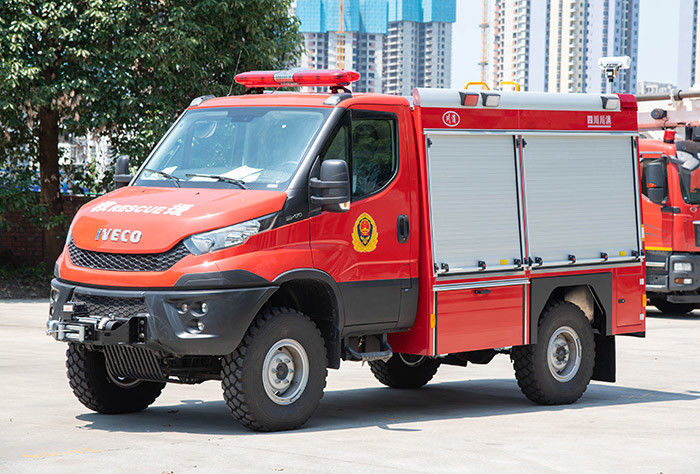

4×4 IVECO DAILY Rescue Fire Engine with CAFS Fire Extinguishing System

Detail Information
Overall Dimension:	6428mm×2200mm×2800mm	Total Weight:	5600Kgs With Full Load
Chassis:	IVECO DAILY And 4×4	Engine:	125Kw
Cabin:	Single Cabin With 2 Seats	Superstructure:	Aluminum Alloy Welded Structure
Liquid Tank:	700L And PP Material	Painting:	Red Color And U.S. PPG Brand
High Light:	4×4 Rescue Fire Engine , IVECO DAILY Rescue Fire Engine , Rescue Fire Engine with CAFS

Product Description

1. 4×4 IVECO DAILY Rescue Fire Engine with CAFS Fire Extinguishing System

2. Vehicle Parameters

2.1 Dimensions: 6428mm×2200mm×2800mm

2.2 Total mass of full load: 5600kg

2.3 Number of crew: 1+1

2.4 Maximum speed: 90km/h

2.5 Emission Standard: Optional

2.6 Liquid tank capacity: 700L

2.7 Total CAFS output: 15000L

3. Superstructure

3.1 Cabin

Structure: Double row cabin with 4 doors.
Seats: 2+4, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats.

3.2 Standardized Sub-frame

Material: High-strength rectangular tube made of special steel
Performance: The liquid tank and the sub-frame are connected by elastic connecting seats.

3.3 Compartment

Material: High-strength aluminum alloy profiles (Never Rust)
Structure: Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear.

3.4 Roller Shutter Door

Material: Aluminum alloy profiles with anodized surface.
Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.

3.5 Foot Pedals

Material: High quality aluminum alloy.
Structure: 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.

3.6 Superstructure Electric Appliance

Warning Light and Siren: Long-row warning light and siren are mounted above cabin. The controller is installed in the driver’s cabin.
Strobe Light: Mounted on the both sides of the compartment.
External Lighting: LED lights are mounted on the both sides of the compartment.
Roof Lighting: LED lights are mounted on the inside of the roof.
Side Indicator Light: Inline yellow warning light is mounted on the side of the compartment and pedals.

3.7 Compressed air foam fire extinguishing system

3.7.1 Brand: Sichuan Consumer

3.7.2 Model: CAFS 700

3.7.3 Liquid tank capacity: 700L

3.7.4 Working pressure of liquid tank: 0.7～1.2MPa

3.7.5 Number of gas cylinders: 2

3.7.6 Compressed gas capacity: 8495L/15.5MPa

3.7.7 Total output of compressed air foam: 15000L

3.7.8 Compressed air foam range: 22m
3.8. Winch

3.8.1 Model: K8000XF

3.8.2 Installation form: under the front bumper

3.8.3 Drive form: electric
