Detail Information |
|||
| Overall Dimension: | 6070mm×2050mm×3000mm | Total Weight: | 7100Kgs With Full Load |
|---|---|---|---|
| Chassis: | 4*2 FOTON Brand | Engine Power: | 85Kw |
| Cabin: | Double Row Cabin With 5 Seats | Superstructure: | Aluminum Alloy Welded Structure |
| Liquid Tank: | 2800L Water Tank & PP Material (Never Rust) | Water Pump: | 30L/s At 10bar |
| Roof Monitor: | 30L/s At 10bar With 55m Shoot Range | Painting: | Red Color, U.S. PPG |
| High Light: |
85Kw Small Fire Fighting Truck, Foton Small Fire Fighting Truck, 7100Kgs Fire Fighting Truck |
||
Product Description

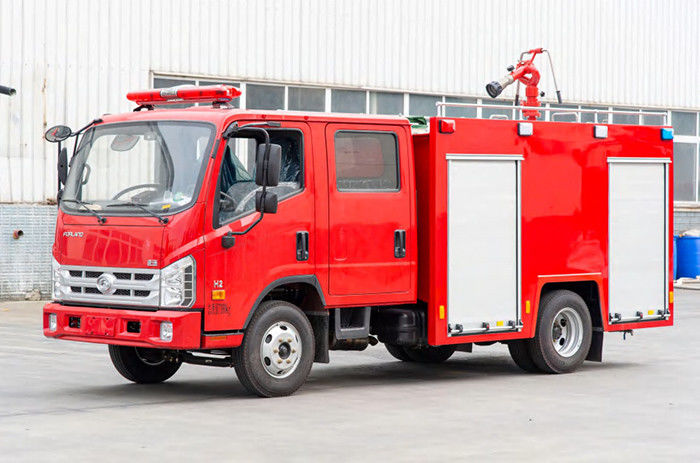

Foton Water Tender Small Fire Fighting Truck with Double Row Cabin
1. Overview of the Small Fire Truck
The fire truck SXF5071GXFSG30 is composed of Foton chassis, compartment, fire power transmission system, fire hydraulic system, fire control system, bodywork electrical system, auxiliary lighting device, etc. It adopts advanced technologies such as elastic non-torque connection between the upper body and the frame, polymer composite upper body structure, and centralized control of upper body equipment. The vehicle has reasonable structure design, strong maneuverability, high fire-fighting efficiency, integrated fire-fighting and rescue functions, and can be widely used in rural villages and towns.
2. Vehicle Parameters
2.1 Dimensions: 6070mm×2050mm×3000mm
2.2 Total mass of full load: 7100kg
2.3 Number of crew: 5
2.4 Maximum speed: 90km/h
2.5 Emission Standard: Optional
2.6 Tank capacity: 2850L of water
2.7 Fire pump flow: 30L/s
2.8 Fire monitor flow: 30L/s
3. Main Components of the Small Fire Truck
| 3.1 | Fire Pump | |
| 3.1.1 | Brand | Optional |
| 3.1.2 | Model | Optional |
| 3.1.3 | Rated Flow Rate | 30L/s @ 10bar |
| 3.1.4 | Vacuum Pump | Water ring vacuum pump |
| 3.1.5 | Priming Manner | Automatic |
| 3.1.6 | Suction Height | 7m |
| 3.1.7 | Priming Time | ≤30s |
| 3.1.8 | Location | Rear-mounted |
| 3.2 | Fire Monitor | |
| 3.2.1 | Brand | Optional |
| 3.2.2 | Model | Optional |
| 3.2.2 | Flow Rate | 30L/s @ 10bar |
| 3.2.3 | Shoot Range | 55 m |
| 3.2.4 | Location | On the top of the tank |
| 3.2.5 | Control Manner | Manual |
| 3.2.6 | Horizontal Rotation Angle | 0°~360° |
| 3.2.7 | Pitch Rotation Angle | -15°~60° |
| 3.3 | Liquid Tank | |
| 3.3.1 | Capacity | 2800 Liters Water Tank |
| 3.3.2 | Material | PP composite material and Never Rust |
| 3.3.3 | Structure | 1 Tank Manhole; 1 Overflow Device/Pressure Relief Device; 1 Liquid Level Indicators; 1 tank Drain Outlets with Valves. |
4.1 Various types of control modules can be installed according to the vehicle configuration, and all fire-fighting components are fully electronically controlled, using PLC intelligent control; all buttons, switches and indicators on the control panel are marked with English signs; prominent locations are provided with piping layout and Brief operating instructions. The panel adopts a waterproof and dust-proof design mode, and the protection level can reach IP56.
4.2 Language: English
