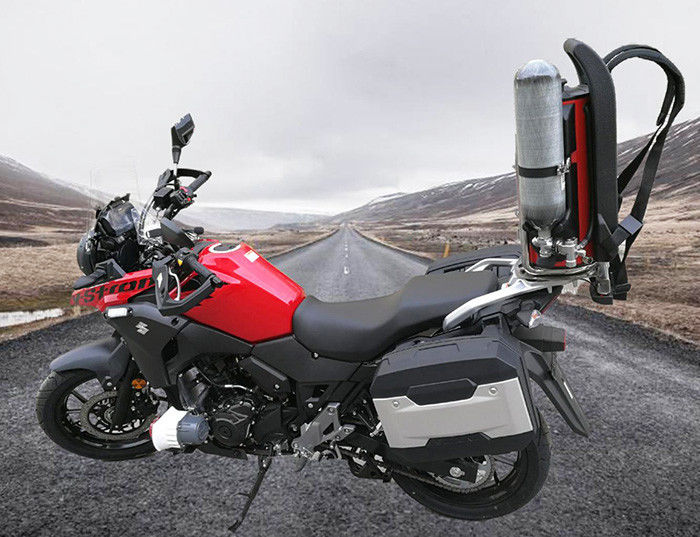

SUZUKI Fire Fighting ATV Motorcycle with Backpack Water Mist System

In stock

Category:

Detail Information

Total Dimensions: 2240mm×905mm×1400mm Empty Weight: 300Kgs
Chassis: SUZUKI DL250 Engine Power: 250cc
Liquid Tank: 12L Water Tank Flow Rate: 24 L/min.
Spray Distance: 15m Air Cylinder Bottle: 2 Liters
High Light:

Fire Fighting ATV Motorcycle

,

SUZUKI Fire Fighting ATV

,

SUZUKI Fire Fighting Motorcycle

Product Description

1. Product Overview

Water Mist / CAFS Fire motorcycle is produced on the motorcycle of SUZUKI DL250 with ABS of BOSCH and it is a mobile all-terrain fire extinguishing device. It can be widely used in high-ways, factories, schools, communities, hospitals, forests, field towns, cultural relics and other places. It could quickly extinguishing the type of A and B class fire in the early stages.

2. Structure

2.1 Motorcycle

Motorcycles is produced by SUZUKI factory in China and the model is DL250. It’s with small size and convenient to go different places.
2.2 Back-Pack Water Mist / CAFS System

The Back-Pack Water Mist / CAFS System use the mixing liquid of compressed air, highly concentrated foam extinguishing liquid and water to extinguish the fire. It could be with bigger heat absorption area and better heat absorption capacity. The effect is much better than normal fire extinguishing agent.



3. Technical Specifications
3.1 The Parameters of Whole Vehicle

3.1.1 Dimensions: Approx. 2240mm×905mm×1400mm (length×width×height)

3.1.2 Full load total mass: Approx. 300kg

3.1.3 Fire extinguishing agent capacity: 12L

3.1.4 Number of crew: 1 person

3.1.5 Maximum speed with full load: 90km/h

3.1.6 Ground clearance: 155mm

3.1.7 Wheelbase: 1430mm

3.1.8 Paint color: black and red

3.2 The Parameters of Motorcycle
3.2.1 Manufacturer: SUZUKI

3.2.2 Motorcycle Model: DL250 with ABS

3.2.3 Curb weight: 206kg

3.2.4 Engine model: 250cc, 4 strokes, two cylinders

3.2.5 Cooling method: water cooling

3.2.6 Fuel supply method: EFI

3.2.7 Start mode: Electric start

3.2.8 Maximum power: 18.4KW / 8000rpm

3.2.9 Maximum torque: 23.4N.m / 6500rpm

3.2.10 Compression ratio: 11.5:1

3.2.11 Fuel tank capacity: 17.3L

3.2.12 Front brake: 290mm disc brake

3.2.13 Rear brake: 240mm disc brake

3.2.14 Front wheel size: 110/80-17 M/C 57H

3.2.15 Rear wheel size: 140/70-17 M/C 66H
3.3 The Parameters of Back-Pack Water Mist / CAFS System
3.3.1 Liquid Tank capacity: 12L

3.3.2 Tank working pressure: 8.5 Bar

3.3.3 Flow rate: 24L/min

3.3.4 Spray distance with jet mode: 12-15m

3.3.5 Spray distance with fog mode: 6-7m

3.3.6 Air Cylinder Bottle: 2L

3.3.7 Weight (empty and without liquid and air bottle): Approx. 8.5kg

3.3.8 Dimension: Approx. 180mm*350mm*700mm



4. Company Introduction

CXFIRE is the largest fire trucks manufacturer in China. Established in 1963. The main manufacturing base is located in Chengdu of Sichuan Province with an area of 200,000 square meters and 600 staff members. More than 1000 units fire trucks are produced and sold every year.
