Detail Information |
|||
| Dimensions: | 3010mm*1575mm*2200mm | Weight: | 1130Kgs |
|---|---|---|---|
| Chassis: | HS-700UTV | Engine Power: | 700cc |
| Cabin: | Single Cabin With 2 Seats | Superstructure: | Aluminum Alloy Welded Structure |
| Liquid Tank: | 100L Water And 20L Foam Tank, PP Material | Water Pump: | 40L/min.@4Mpa |
| Water Nozzle: | 30L/min.@1Mpa With 15m Spray Distance | Paint: | Red Color And U.S. PPG Brand |
| High Light: |
4*4 Fire Fighting ATV, 1130Kgs Fire Fighting ATV, CCC Fire Fighting ATV |
||
Product Description

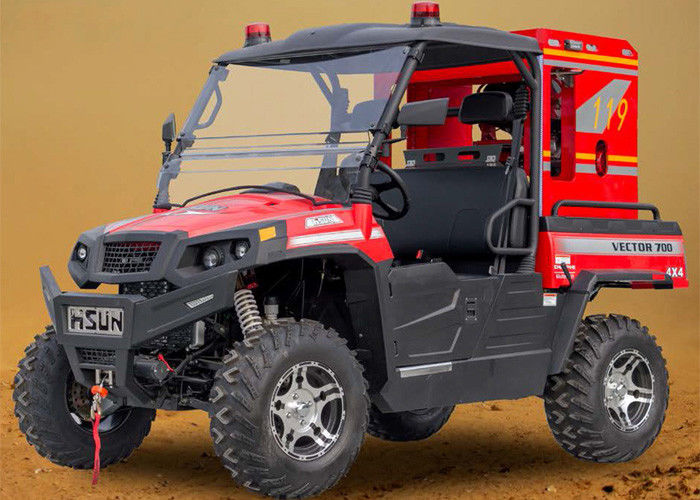

1. Technical Specification for 4*4 Fire Fighting ATV Motorcycle
|
Model |
HS-700UTV |
|
Dimensions (mm) |
Approx. Length:3010, Width:1575, Height:2200 |
|
Total weight (kg) |
Approx. 1130 with full load |
|
Engine Type |
Gasoline, 700cc, water cooled, |
|
Max. Power |
25kw / 6000rpm |
|
Driving type |
Front engine, four-wheel drive 4×4 |
|
Max. speed (km/h) |
60 |
|
Ground clearance (mm) |
310 |
|
Emission standard |
Optional |
|
Motor for water pump |
HONDA Brand |
|
Motor type |
Four-stroke, 1 cylinder |
|
Rated Power (KW) |
4 |
|
Starting method |
Electric |
|
Rotation speed (r/min) |
3600 |
|
Water Pump |
KAPPA430 of Italy |
|
Flow rate (l/min) |
40 |
|
Work Pressure (Mpa) |
4 |
|
Self-suction function (meters) |
5 |
|
Rotation speed (r/min) |
650 |
|
Hose Reel Model |
JPL-13/19-CX-Y |
|
Length of hose (meters) |
30 |
|
Test Pressure (bar) |
100 |
|
Internal and external diameter (mm) |
13/19 |
|
Water Nozzle Model |
GYQ30 |
|
Shot range of straight stream (meters) |
15 |
|
Shot range of mist spray (meters) |
7 |
|
Flow rate of water nozzle (l/min) |
30 |
|
Control rate of foam proportioner |
0.4~6% |
|
Flow rate (l/min) |
adjustable |
|
Water tank (Liters) |
100 |
|
Independent Foam Tank (Liters) |
20 |
2. Company Profile
- CXFIRE is located in Chengdu of China with an area of 200,000 square meters and 600 staff. The annual output is 1000 units fire fighting vehicles. Through 60 years’ development, CXFIRE has become the biggest manufacturer and one-stop solution supplier of fire fighting products in China.
- With modern management system, technology development system, production system and perfect service management system. CXFIRE ranks among the best firefighting companies in terms of technological level, production capacity, equipment scale, and operating efficiency. It has become a international high-efficiency and comprehensive modern fire protection enterprise.
