Detail Information |
|||
| Total Dimensions: | 2240mm*905mm*1400mm | Weight: | 315Kgs |
|---|---|---|---|
| Chassis: | SUZUKI DL250 | Power: | 250cc |
| Liquid Tank: | 12L | Flow Rate: | 24 Liter Per Minute |
| Spray Distance: | 15m | Air Cylinder: | 2L |
| High Light: |

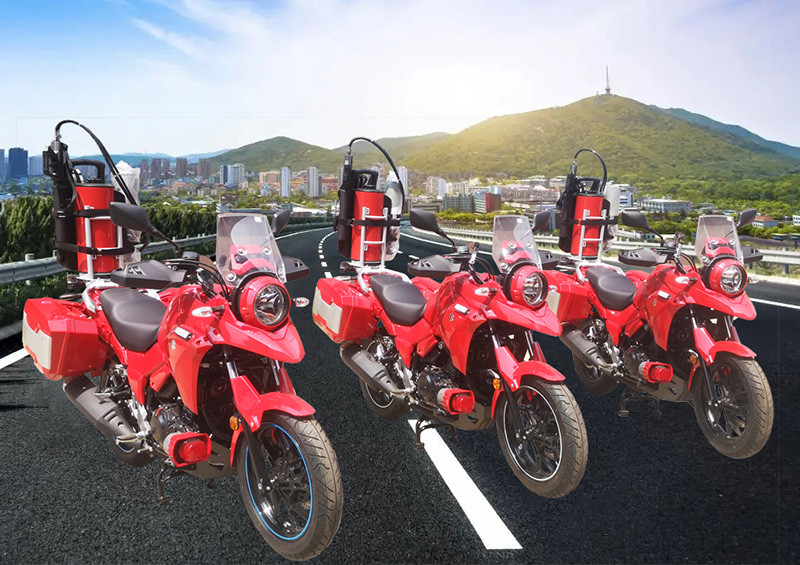

Water Cooling Fire Fighting Motorcycle, 250cc Fire Fighting Motorcycle, SUZUKI DL250 Fire Fighting Motorcycle |
||
Product Description
1. The Datasheet of 2-Wheels Fire Motorcycle
1.1 Dimensions: Approx. 2240*905*1400mm (length×width×height)
1.2 Full load total mass: Approx. 300kg
1.3 Fire extinguishing agent capacity: 12 Liters
1.4 Number of crew: 1 person
1.5 Max. speed with full load: 90km/h
1.6 Ground clearance: 155mm
1.7 Wheelbase: 1430mm
1.8 Paint color: black and red
2. The Datasheet of SUZUKI Motorcycle
2.1 Manufacturer: Japanese SUZUKI
2.2 Motorcycle Model: DL250 with ABS
2.3 Curb weight: 206kg
2.4 Engine model: 250cc, 4 strokes, two cylinders
2.5 Cooling method: water cooling
2.6 Fuel supply method: EFI
2.7 Start mode: Electric start
2.8 Maximum power: 18.4KW / 8000rpm
2.9 Maximum torque: 23.4N.m / 6500rpm
2.10 Compression ratio: 11.5:1
2.11 Fuel tank capacity: 17.3L
2.12 Front brake: 290mm disc brake
2.13 Rear brake: 240mm disc brake
2.14 Front wheel size: 110/80-17 M/C 57H
2.15 Rear wheel size: 140/70-17 M/C 66H
3. The Datasheet of Back-Pack Water Mist / CAFS System
3.1 Liquid Tank capacity: 12 Liters
3.2 Tank working pressure: 8.5 Bar
3.3 Flow rate: 24L/min
3.4 Spray distance with jet mode: 12-15m
3.5 Spray distance with fog mode: 6-7m
3.6 Air Cylinder Bottle: 2L
3.7 Weight (empty and without liquid and air bottle): Approx. 8.5kg
3.8 Dimension: Approx. 180*350*700mm
