Detail Information |
|||
| Dimensions: | 9140mm×2525mm×3770mm | Weight: | 16000kgs With Full Load |
|---|---|---|---|
| Chassis: | 6*4 SAIC-IVECO HONGYAN | Rated Power: | 287Kw |
| Crew Cabin: | Cabin With 2 Doors And 2 Seats | Superstructure: | Aluminum Alloy Welded Structure |
| Water Tank: | 2000L Water Tank | Exhaust Max. Flow: | 200000m3/h (Positive Pressure) |
| High Light: |
Smoke Exhaust Special Fire Fighting Truck, SAIC-IVECO Fire Fighting Truck, 2T Water Tank Fire Fighting Truck |
||
Product Description
1. Company Introduction
CXFIRE, founded in the year of 1963, is the biggest fire fighting vehicles manufacturer in China. The annual output is 1000 units fire fighting trucks. The main factory is located in Chengdu of China with an area of 200,000 square meters and 600 employees.

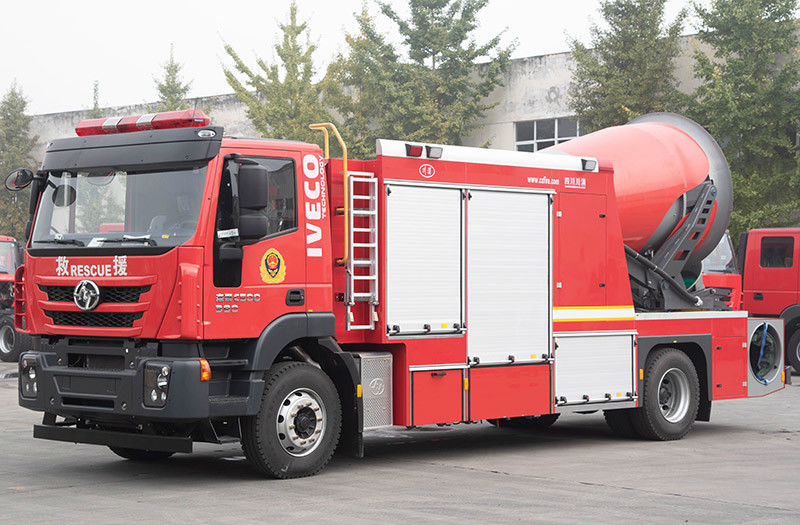

2. SAIC-IVECO HONGYAN Smoke Exhaust Special Fire Fighting Truck
| No. | Main Items | Technical Parameters |
| 2.1 | Model | SXF5161TXFPY56 |
| 2.2 | Overall Dimension |
9140mm×2525mm×3770mm |
| 2.3 | Full Load Weight | 16000Kgs with Full Load |
| 2.4 | Number of the Crew | 1+1 |
| 2.5 | Max. Speed | 90km/h |
| 2.6 | Capacity | 2000L water |
| 2.7 | Exhaust Max. Flow | 200000 m3/h (Positive pressure) |
| 2.8 | Water Pump | 20L/s flow rate |
3. Superstructure
3.1 Cabin
Structure: Single row cabin with 2 doors.
Seats: 1+1
3.2 Standardized Sub-frame
Material: High-strength rectangular tube made of special steel
Performance: The liquid tank and the sub-frame are connected by elastic connecting seats.
3.3 Compartment
Material: High-strength aluminum alloy profiles (Never Rust)
Structure: Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear.
3.4 Roller Shutter Door
Material: Aluminum alloy profiles with anodized surface.
Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
3.5 Foot Pedals
Material: High quality aluminum alloy.
Structure: 50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.
3.6 Superstructure Electric Appliance
Warning Light and Siren: Long-row warning light and siren are mounted above cabin. The controller is installed in the driver’s cabin.
Strobe Light: Mounted on the both sides of the compartment.
External Lighting: LED lights are mounted on the both sides of the compartment.
Roof Lighting: LED lights are mounted on the inside of the roof.
Side Indicator Light: Inline yellow warning light is mounted on the side of the compartment and pedals.
