Detail Information |
|||
| Total Dimension: | 10430mm×2500mm×3790mm | Full Weight: | 32000Kgs With Full Load |
|---|---|---|---|
| Chassis: | 6×4 Germany MAN | Engine: | 353Kw |
| Cabin: | Front Driver’s Cabin+Rear Crew Cabin, 2+4 Seats | Superstructure: | Aluminum Alloy Welded Structure |
| Liquid Tank: | 12000L Water Tank & 4000L Foam Tank & PP Material | Water Pump: | 100L/s@10bar |
| Water Monitor: | 80L/s@10bar With 85m Shoot Range | Painting: | Red Paint Of U.S. PPG |
| High Light: |
Heavy Duty Fire Truck with 16000L, 353Kw Heavy Duty Fire Truck, 6×4 Heavy Duty Fire Truck |
||
Product Description

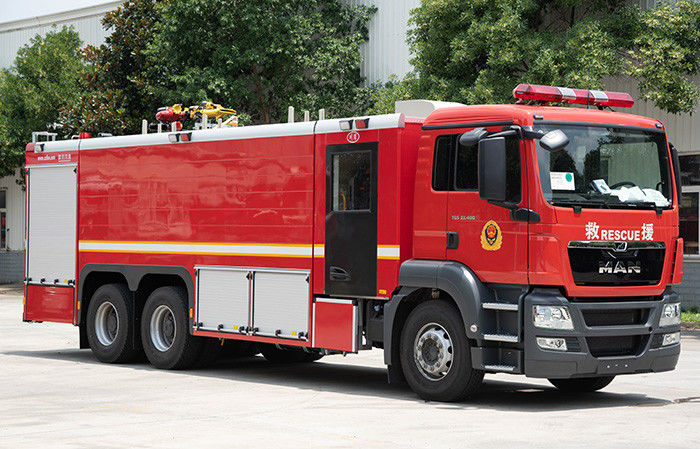

- Heavy Duty Fire Truck with 16000L Water & Foam and MAN Chassis
- Germany MAN heavy-duty fire fighting truck is a common vehicle used in the industrial areas and fire department. It can take 6 firefighters and has 12000L water tank & 4000L foam tank. The fire pump flow rate has 100L/s and the fire monitor is 85m shoot range.
1. The Whole Fire Truck
| No. | Main Items | Technical Parameters |
| 1.1 | Model | SXF5321GXFPM160/M |
| 1.2 | Overall Dimension |
10430mm×2500mm×3790mm |
| 1.3 | Full Load Weight | 32000kgs |
| 1.4 | Number of the Crew | 6 (include driver) |
| 1.5 | Max. Speed | 90km/h |
| 1.6 | Capacity | 12000L Water & 4000L Foam. PP composite material liquid tank (Never Rust) |
| 1.7 | Fire pump flow rate | 100L/s @ 10bar |
| 1.8 | Fire monitor | 80L/s flow rate, 85m shoot range |
| 1.9 | Paint | Red Color, U.S. PPG |
2. Chassis
- Manufacturer: Germany MAN
- Model: Optional
- Drive type: 6*4
- Wheelbase: 5100+1400mm
- Engine type: Inline 6-cylinder, turbocharged, inter-cooled diesel engine
- Power: 353Kw
- Gearbox: Manual gearbox, 16 forward gears + 2 reverse gear
- PTO: Full power sandwich type, with additional cooling device
- Fuel tank capacity: 300L
3. Superstructure of the Heavy Duty Fire Truck
3.1 Cabin
3.1.1 Structure: Front Driver’s Cabin+Rear Crew Cabin
3.1.2 Seats: 1+1 in the front cabin, 4 people in the crew cabin.
3.1.3 Safety: Three-point pre-tightened seat belts are installed.
3.1.4 SCBA Setting: SCBA brackets are installed at the rear seats, and 6.8L-9L air cylinders can be placed.
3.1.5 Interior: PTO switch and alarm lights switches installed in the cab etc.
3.1.6 Lighting: Original lighting of chassis.
3.1.7 Step ladder: High-strength integrated non-slip step ladder.
3.1.8 Storage space: Storage box is arranged under the rear seats.
3.1.9 Air conditioning: fluorine-free environmental protection air conditioning system.
3.1.10 Handrail: Non-slip safety handrail.
3.2 Aluminum Compartment
3.2.1 Material: All made of high-strength aluminum alloy profiles.
3.2.2 Structure: The frame of the carriage is all-aluminum alloy frame welded structure, and the outer skin is made of bonded aluminum alloy plates.
3.2.3 Roof guard: Made of aluminum alloy as a whole, with strobe warning lights and exterior lights installed outside, and LED roof lights inside.
3.2.4 Ladder frame: A set of multifunctional ladder frame is set on the top.
3.2.5 Rear ladder: An aluminum alloy safety ladder leading to the roof is set on the right side of the rear.
3.3 Electrical System
3.3.1 Warning light: Long row warning light are set on the top; The control devices are installed in the cab.
3.3.2 Equipment box lights: There are LED white lighting strips on both sides of the equipment box. The light switch and the rolling door are linked.
3.3.3 Strobe lights: Strobe lights for warning are arranged on the upper part.
3.3.4 Exterior lighting: LED lights for lighting are provided on the upper part of the compartment.
3.3.5 Roof lighting: LED lights are provided inside the top of the carriage.
3.3.6 Side Indicater Light: Built-in yellow indicater lights are installed on pedals.
| No. | Main Items | Technical Parameters |
| 4.1 | Water Pump | |
| 4.1.1 | Brand | Optional |
| 4.1.2 | Model | Optional |
| 4.1.3 | Flow Rate | 100L/s @ 10bar |
| 4.1.4 | Vacuum Pump | Electric vacuum pump |
| 4.1.5 | Priming Manner | Automatic |
| 4.1.6 | Suction Height | 7m |
| 4.1.7 | Priming Time | ≤60s |
| 4.1.8 | Location | Rear-mounted |
| 4.2 | Roof Fire Monitor | |
| 4.2.1 | Brand | Optional |
| 4.2.2 | Model | Optional |
| 4.2.2 | Flow Rate | 80L/s @ 10bar |
| 4.2.3 | Shoot Range | Water ≥85 m, Foam ≥ 80 m |
| 4.2.4 | Location | On the top of the tank |
| 4.2.5 | Control Manner | Remote Control |
| 4.2.6 | Horizontal Rotation | 0°~340° |
| 4.2.7 | Pitch Rotation | -15°~60° |
| 4.3 | Liquid Tank | |
| 4.3.1 | Capacity | Water 12000L, Foam 4000L |
| 4.3.2 | Material | PP composite material and Never Rust |
| 4.3.3 | Structure | Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves. |
