Detail Information |
|||
| Dimension: | 5907*2083*1954mm | Total Weight: | 2800Kgs With Full Load |
|---|---|---|---|
| Chassis: | FORD 150 LTD | Engine: | 280Kw |
| Cabin: | Double Row Cabin With 4 Doors | Superstructure: | PP Composite Material – Never Rust |
| Front Winch: | 3629Kg Traction | Painting: | Red Color And U.S. PPG Brand |
| High Light: |
280Kw Small Fire Truck, 2800Kgs Small Fire Truck, CCC Small Fire Truck |
||
Product Description

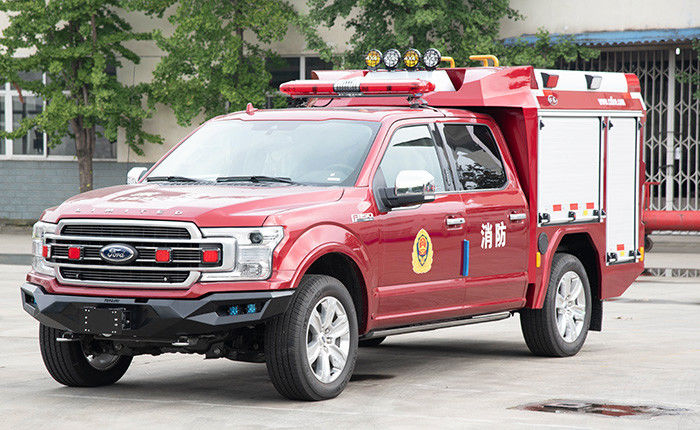

- Ford 150 4×4 Pick-up Small Fire Truck and Rapid Intervention Vehicle (RIV)
- The city’s rapid response fire truck is modified from Ford 150 4×4 Pick-up chassis. The vehicle is small and flexible, it has strong climbing ability and the ability to adapt to various terrains. It can be widely used in port terminals and cargo piles. Fields, industrial and mining enterprises, business squares and community towns and other places can quickly reach the scene to extinguish the initial fire. It is an ideal equipment for the firefighting force to respond quickly to fire rescue.
| 1. Chassis | |
| 1.1 | Chassis:Ford 150 4×4 |
| 1.2 |
Engine: 2.1 Engine power: 280Kw 2.2 Engine model: V6 2.3 Number of cylinders: 6 2.4 Emission Standard: China 6 (Euro 6) 2.5 Transmission (type): 10-speed automatic 2.7 Torque (Nm): 672 2.7 Fuel tank capacity (L): 136 2.8 Fuel type: diesel |
| 1.3 | Drive Manner:4×4 |
| 1.4 | Max. Speed(km/h):175 |
| 1.5 |
Cabin: 5.1 Structure:4 doors, original double row cabin 5.2 Seats:2＋3 |
| 1.6 | Wheelbase(mm): 3685 |
| 1.7 | Number of wheels: 4 |
| 1.8 | 5907*2083*1954 |
| 1.9 | Standard configuration: ABS/EBD/EBA/ASR/ESP, 360-degree panoramic image, reversing radar, keyless start system, keyless entry function, tire pressure alarm, uphill assistance, steep slope descent, electric adjustment of the main and passenger seats, Dual airbags, electric windows, electric adjustment of rear-view mirrors, up and down adjustment of steering wheel, large 8-inch center console color screen, driving computer display, Bluetooth/car phone. In addition, a winch is installed at the front of the vehicle and a rear trailer hook is installed at the rear of the vehicle. |
| 1.10 | Max. Weight: 2475kg |
| 2. Rear Superstructure | |
| 2.1 | Structure: The carriage adopts high-strength PP-C composite material welding structure, which is modified on the basis of the original car body. |
| 2.2 |
Equipment door: (1) There are 2 aluminum alloy rolling shutter doors on the left and right sides of the equipment box. The door frame is made of light high-quality aluminum alloy, which is flexible to open and close, good in sealing, low noise, beautiful in appearance, light and reliable. All rolling doors can be opened with one key . (2) The rear equipment box door adopts gas spring up and down door |
| 2.3 | Equipment layout: The left and right sides and the rear of the carriage can be equipped with hydraulic demolition, hydraulic support, detection, personal protection, and alert equipment. |
| 2.4 |
Equipment Layout Principle: ★ Design equipment integration according to battle organization and battle deployment; ★ Design various equipment brackets according to ergonomic principles; ★ Place the equipment according to the logical relationship and frequency of use; ★ Stand on the ground or pedals, take and place fire fighting equipment in 2 actions. |
| 3. Front Winch | |
| 3.1 |
Brand: Champion Model: K8000XF Rated tension: 3629Kg |
| 3.2 | Traction wire: ∮8X29M |
| 4. Electrical system | |
| 4.1 |
Install 6 off-road lights on the front of the vehicle |
| 4.2 | The power of the alarm is 100W; the alarm and warning light circuits are independent additional circuits, and the control device is installed in the cab. |
| 4.3 | Two flashing lights are provided on the upper part of each side of the carriage. |
| 4.4 | There are two lights at the back of the equipment box. |
| 5.On-board equipment | |
| 5.1 | 5 sets of special warning tapes |
| 5.2 | On-board tool box 1 set |
| 6.Documents | |
| 1 | Vehicle Operation and Maintenance Manual |
| 2 | Vehicle Certificate |
