Detail Information |
|||
| Overall Dimension: | 6840×2200×3200mm | Total Weight: | 9680Kgs With Full Load |
|---|---|---|---|
| Chassis: | 4×2, ISUZU Brand | Engine Power: | 141Kw |
| Cabin: | Double Row Cabin With 5 Seats | Superstructure: | Aluminum Alloy Welded Structure |
| Liquid Tank: | 3000L Water Tank & PP Material (Never Rust) | Water Pump: | 40L/s At 10bar |
| Roof Monitor: | 40L/s At 10bar With 50m Shoot Range | Painting: | Red Color, U.S. PPG |
| High Light: |
800Gallons Small Fire Truck, ISUZU Water Tanker Small Fire Truck, 800Gallons ISUZU Fire Truck |
||
Product Description

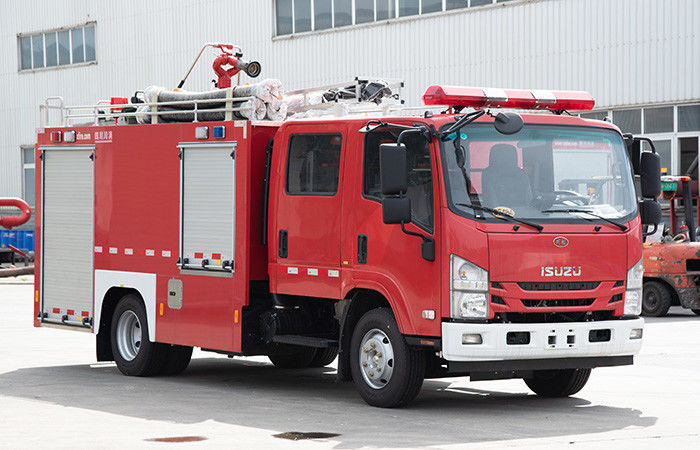

1. 800 Gallons ISUZU Water Tanker Small Fire Truck with Double Row Cabin
| No. | Main Items | Technical Parameters |
| 1.1 | Model | SXF5100GXFSG35 |
| 1.2 | Overall Dimension | 6840mm×2200mm×3200mm |
| 1.3 | Full Load Weight | 9680kgs |
| 1.4 | Number of the Crew | 5 (include driver) |
| 1.5 | Max. Speed | 90km/h |
| 1.6 | Capacity | 3000L Water. PP composite material liquid tank (Never Rust) |
| 1.7 | Fire pump flow rate | 40L/s @ 10bar |
| 1.8 | Fire monitor | 32L/s flow rate, 65m shoot range |
| 1.9 | Painting | Red Color, U.S. PPG |
2. Chassis of the Small Fire Truck
| No. | Main Items | Technical Parameters |
| 2.1 | Manufacturer | Japanese ISUZU |
| 2.2 | Model |
QL1100A8KAY |
| 2.3 | Drive type | 4*2 |
| 2.4 | Wheelbase | 3815mm |
| 2.5 | Engine model |
4HK1-TC51 |
| 2.6 | Engine | Inline 4-cylinder, turbocharged, inter-cooled diesel engine |
| 2.7 | Power | 141Kw |
| 2.8 | Gearbox form | Manual gearbox, 6 forward gears + 1 reverse gear |
| 2.9 | PTO | Full power sandwich type |
| 2.10 | Fuel Tank | 100L |
3. Superstructure of SXF5100GXFSG35
3.1 Cabin
- Structure: Double row cabin with 4 doors.
- Seats: 2+4, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats.
3.2 Compartment
- Material: High-strength aluminum alloy profiles (Never Rust)
- Structure: Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear.
3.3 Roller Shutter Door
- Material: Aluminum alloy profiles with anodized surface.
- Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
3.4 Superstructure Electric Appliance
- Warning Light and Siren: Long-row warning light and siren are mounted above cabin. The controller is installed in the driver’s cabin.
- Strobe Light: Mounted on the both sides of the compartment.
- External Lighting: LED lights are mounted on the both sides of the compartment.
- Roof Lighting: LED lights are mounted on the inside of the roof.
- Side Indicator Light: Inline yellow warning light is mounted on the side of the compartment and pedals.
3.5 Water Pump
- Flow Rate: 40L/s @ 10bar
- Vacuum Pump: Electric vacuum pump
- Priming Manner: Automatic
- Suction Height: 7m
- Priming Time: ≤35s
- Location: Rear-mounted
3.6 Roof Water Monitor
- Flow Rate: 40L/s @ 10bar
- Shoot Range: Water ≥ 50 m
- Location: On the top of the tank
- Control Manner: Manual
- Horizontal Rotation Angle 0°~360°
- Pitch Rotation Angle: -15°~60°
3.7 Liquid Tank
Capacity: 3000 Liters Water
Material: PP composite material and Never in Rust.
Structure: 1 Tank Manhole; 1 Overflow Device/Pressure Relief Device; 1 Liquid Level Indicators; 1 tank Drain Outlets with Valves.
4. Company Profile
As the biggest fire trucks’ manufacturer in China with 60 years’ experience, CXFIRE will adhere to the tenet of “seeking truth and innovation, quality and customer first”, and to provide users with more advanced, safe and reliable fire protection products. The company has won the trust and appreciation of users with its high-quality products and fast service; the products are spread all over the country and are exported to many countries and regions in Europe, Middle East, Asia, Australia, South America, and Africa etc. Maintained high-speed growth, and exported hundreds of fire trucks every year.
