Detail Information |
|||
| Overall Dimension: | 9800mm×2500mm×3900mm | Total Weight: | 29000kg |
|---|---|---|---|
| Chassis: | 6×6 Germany Benz | Engine: | 425/1600（kW/rpm） |
| Cabin: | Single Cabin With 3 Seats | Superstructure: | Aluminum Alloy Welded Structure |
| Liquid Tank: | 10000L Water Tank & 1000L Foam Tank & PP Material | Water Pump: | 100L/s@10bar |
| Water Monitor: | 100L/s@10bar With 90m Shoot Range | Paint: | Red Color And U.S. PPG Brand |
| High Light: |
6×6 Fire Fighting Truck, Welded Fire Fighting Truck, ARFF Fire Engine Trucks |
||
Product Description

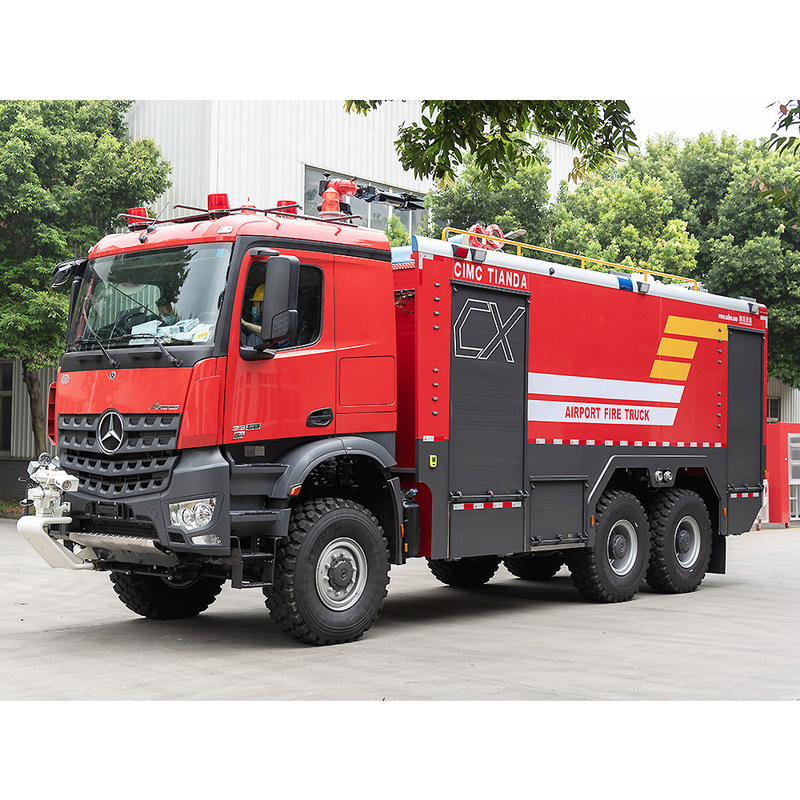

1. 6×6 Airport ARFF Fire Fighting Truck China Manufacturer for Fire Engine
This vehicle is a special fire-fighting vehicle for the airport. It has strong power and excellent road passing ability. It can arrive safely and quickly for fire-fighting and rescue.The detailed parameters are as follows.
2. The Whole Fire Truck’s Parameters
| No. | Main Items | Technical Parameters |
| 2.1 | Model |
SXF5322GXFJX110/B |
| 2.2 | Overall Dimension |
9800mm×2500mm×3900mm |
| 2.3 | Full Load Weight | 27100kgs |
| 2.4 | Number of the Crew | 3 (include driver) |
| 2.5 | Max. Speed | 100km/h |
| 2.6 | Capacity | 10000L Water & 1000L Foam. PP composite material liquid tank |
| 2.7 | Fire pump flow rate | 100L/s @ 10bar |
| 2.8 | Fire monitor | 100L/s flow rate, 80m shoot range |
| 2.9 | Painting | Red paint of U.S. PPG |
3. Benz Chassis
Manufacturer: Germany Benz
Model: Benz Arocs 3358
Drive type: 6*6
Wheelbase: 4450mm+1450mm
Engine model: OM473
Engine type: Inline 6-cylinder, turbocharged, inter-cooled diesel engine
Rated power: 425Kw
Gearbox form: Automatic transmission, 16 forward gears + 4 reverse gear
Fuel tank capacity: 290L
4. Fire Extinguishing System
4.1 Fire Pump
Flow Rate: 100L/s @ 10bar
Vacuum Pump: Integrated design with the water pump, directly driven by the pump shaft, no need for additional power, no noise
Priming Manner: Automatic
Suction Height: 7m
Priming Time: ≤80s
Location: Rear mounted
4.2 Fire Monitor
Flow Rate: 100L/s @ 10bar,adjustable flow
Shoot Range: Water ≥ 90 m, Foam ≥ 85 m
Location: On the top of the tank
Control Manner: Remote control
Horizontal Rotation Angle 0°~330°
Pitch Rotation Angle: -15°~60°
4.3 Liquid Tank
Capacity: Water 10000L, Foam 1000L.
Material: PP composite material and Never Rust.
Structure: Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.
4.4 Control Panel
Structure: Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level.
Location: In middle pump room.
