4×2 SAIC-IVECO Water and Foam Tender Fire Fighting Trucks Specialized Vehicle Price China Factory

Detail Information
Overall Dimension:	8420mm×2500mm×3730mm	Total Weight:	16800Kgs With Full Load
Chassis:	4×2 SAIC-IVECO HONGYAN	Engine:	257Kw
Cabin:	Front Driver’s Cabin+Rear Crew Cabin, 2+6 Seats	Superstructure:	Aluminum Alloy Welded Structure
Liquid Tank:	3000L Water Tank & 1000L Foam Tank & PP Compostie Material (Never Rust)	Water Pump:	60L/s@10bar
Water Monitor:	48L/s@10bar With 60m Shoot Range	Paint:	Red Paint Of U.S. PPG
High Light:	8 Firefighters Foam Tender Fire Trucks , SAIC-IVECO HONGYAN Foam Tender Fire Trucks , 4000L Foam Tender Fire Trucks

Product Description

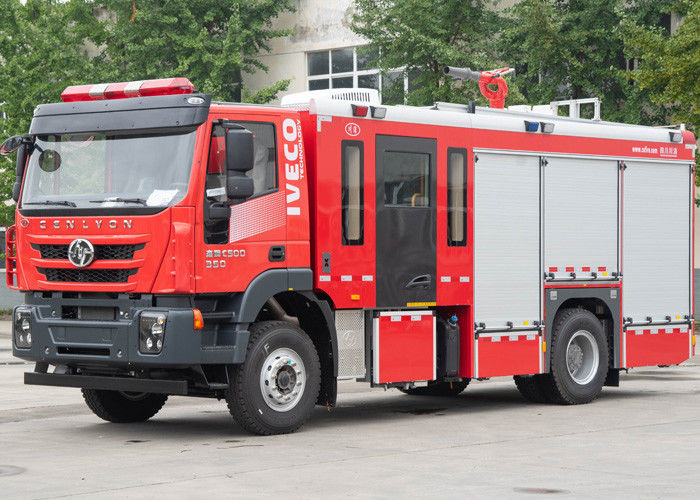

4×2 SAIC-IVECO HONGYAN 4000L Water and Foam Fire Truck with 8 Firefighters
The 4*2 SAIC-Iveco Hongyan 4000L water/foam fire truck is a multifunctional fire truck dedicated to the city. It can accommodate 8 firemen and is equipped with a 3000L water tank and a 1000L foam water tank. The flow rate of the fire pump is 60L/s, and the range of the fire monitor is 60m. The specific parameters are as follows.

1. The Whole Fire Fighting Truck

No.	Main Items	Technical Parameters
1.1	Model	SXF5171GXFPM40
1.2	Overall Dimension	8420mm×2500mm×3730mm
1.3	Full Load Weight	16800kgs
1.4	Number of the Crew	8 (include driver)
1.5	Max. Speed	90km/h
1.6	Capacity	3000L Water & 1000L Foam. PP composite material liquid tank
1.7	Fire pump	60L/s @ 10bar
1.8	Fire monitor	48L/s flow rate, 60m shoot range
1.9	Painting	Red paint of U.S. PPG

2. Chassis

Manufacturer: SAIC-IVECO HONGYAN
Model: Optional
Drive type: 4×2
Wheelbase: 4600mm
Engine model: Optional
Engine type: Inline 6-cylinder, turbocharged, inter-cooled diesel engine
Rated power: 221Kw
Gearbox: Manual gearbox
PTO: Full power sandwich type
Fuel tank capacity: 200L aluminum alloy fuel tank

3. Superstructure of The Fire Fighting Truck

No.	Main Items	Technical Parameters
3.1	Cabin
3.1.1	Structure	Front Driver’s Cabin+Rear Crew Cabin
3.1.2	Seats	2+6, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats
3.2	Standardized Sub-frame
3.2.1	Material	High-strength rectangular tube made of special steel
3.2.2	Performance	The liquid tank and the sub-frame are connected by elastic connecting seats
3.3	Compartment
3.3.1	Material	High-strength aluminum alloy profiles (Never Rust)
3.3.2	Structure	Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
3.4	Roller Shutter Door
3.4.1	Material	Aluminum alloy profiles with anodized surface
3.4.2	Structure	With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
3.5	Foot Pedals
3.5.1	Material	High quality aluminum alloy
3.5.2	Structure	50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.
3.6	Superstructure Electric Appliance
3.6.1	Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver’s cabin.
3.6.2	Strobe Light	Mounted on the both sides of the compartment
3.6.3	External Lighting	LED lights are mounted on the both sides of the compartment
3.6.4	Roof Lighting	LED lights are mounted on the inside of the roof
3.6.5	Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals
