Detail Information |
|||
| Overall Dimension: | ≤8600mm×≤2550mm×≤3800mm | Total Weight: | ≤18650kg |
|---|---|---|---|
| Chassis: | SITRAK ZZ5206N471GF5，4×2 | Engine Power: | 257/2200（kW/rpm） |
| Cabin: | Double Row Cabin With 6 Seats | Superstructure: | Aluminum Alloy Welded Structure |
| Liquid Tank: | 2500L Water Tank & 660L Foam Tank & PP Material | Water Pump Flow: | 40L/s At 10bar |
| Water Monitor Flow: | 32L/s | Max. Working Height: | 18 Meters |
| Max. Working Range: | 12 Meters | Painting: | Fire Red |
| High Light: |
Aerial Ladder Fire Truck 105km/h, 18m Ladder Fire Truck, SITRAK Ladder Fire Truck |
||
Product Description

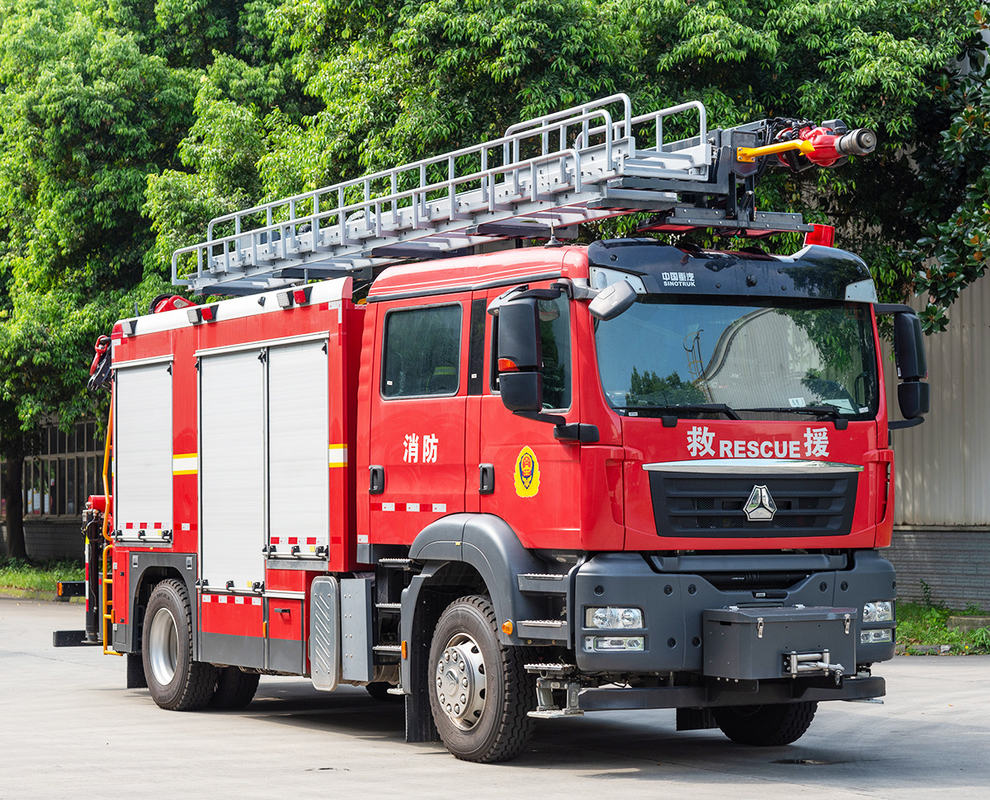

SITRAK 18m Aerial Ladder Fire Truck (New Boom)
1. Enterprise Profile
CXFIRE, founded in the year of 1963, is the biggest fire fighting vehicles manufacturer in China. The annual output is 1000 units fire fighting trucks. The main factory is located in Chengdu of China with an area of 200,000 square meters and 600 employees.
2. SITRAK 18m Aerial Ladder Fire Truck (New Boom)
The heavy-duty water tower fire truck SXF5192JXFYT18/A is a usual vehicle used in municipal fire department and industrial areas. The max. working height is 18m and the working range is 12 meters. It can take 2500L water tank & 660L foam tank. The fire pump flow rate is 60L/s and the fire monitor has 70m shoot distance.
3. The Whole Fire Truck’s Parameters
| No. | Main Items | Technical Parameters |
| 3.1 | Model | SXF5192JXFYT18/A |
| 3.2 | Overall Dimension |
≤8600mm×≤2550mm×≤3800mm |
| 3.3 | Full Load Weight |
≤18650kg |
| 3.4 | Number of the Crew | 2+4 (include driver) |
| 3.5 | Max. Speed | 105km/h |
| 3.6 | Capacity | 2500L Water & 660L Foam. PP composite material liquid tank |
| 3.7 | Fire pump flow rate | 50L/s @ 10bar |
| 3.8 | Fire monitor | 32L/s. flow rate, 40m shoot range |
| 3.9 | Max. working height | 18m |
4. Chassis
4.1 Manufacturer: Sinotruk Group Jinan Commercial Vehicle Co., Ltd.
4.2 Model: ZZ5206N471GF5
4.3 Drive type: 4*2
4.4 Wheelbase: 4700mm
4.5 Engine model: MC07H.35-60
4.6 Engine type: In-line 6-cylinder diesel engine, electronically controlled high-pressure common rail, turbocharged intercooler
4.7 Rated power: 257/2200(kW/rpm)
4.8 Gearbox form: Manual gearbox
4.9 PTO: Full power sandwich type, with additional cooling device
4.10 Fuel tank capacity: 200L fuel tank
- Rated Flow Rate: 40L/s @ 10bar
- Vacuum Pump: Electric vacuum pump
- Priming Manner: Automatic
- Suction Height: 7m
- Priming Time: ≤60s
- Location: Center-mounted
- Flow Rate: 32L/s.
- Shoot Range: Water ≥ 40 m
- Location: Top of the boom
- Control Manner: Electric remote control
- Horizontal Rotation Angle: -90°~90°
- Pitch Rotation Angle: -100°～35°
- Capacity: Water 2500 Liters + Foam 660 Liters
- Material: PP composite material and Never Rust
- Structure: Two Tank Manhole; Two Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.
6. Company Pictures for Your Reference
