Detail Information |
|||
| Overall Dimension: | 6950mm×2430mm×3300mm | Weight: | 11500kg |
|---|---|---|---|
| Chassis: | Germany MAN, 4X2 | Engine: | 184Kw |
| Cabin: | Double Row Cabin With 4 Doors | Superstructure: | Aluminum Alloy Welded Structure |
| Tank: | 2500L Water & 500L Foam . PP Material | Water Pump: | 60L/s@10bar |
| Roof Water Monitor: | 48L/s@10bar With 70m Shoot Range | Painting: | Red Color, U.S. PPG |
| High Light: |
Red Foam Fire Truck, MAN Small Foam Fire Truck, 184Kw Fire Fighting Truck |
||
Product Description

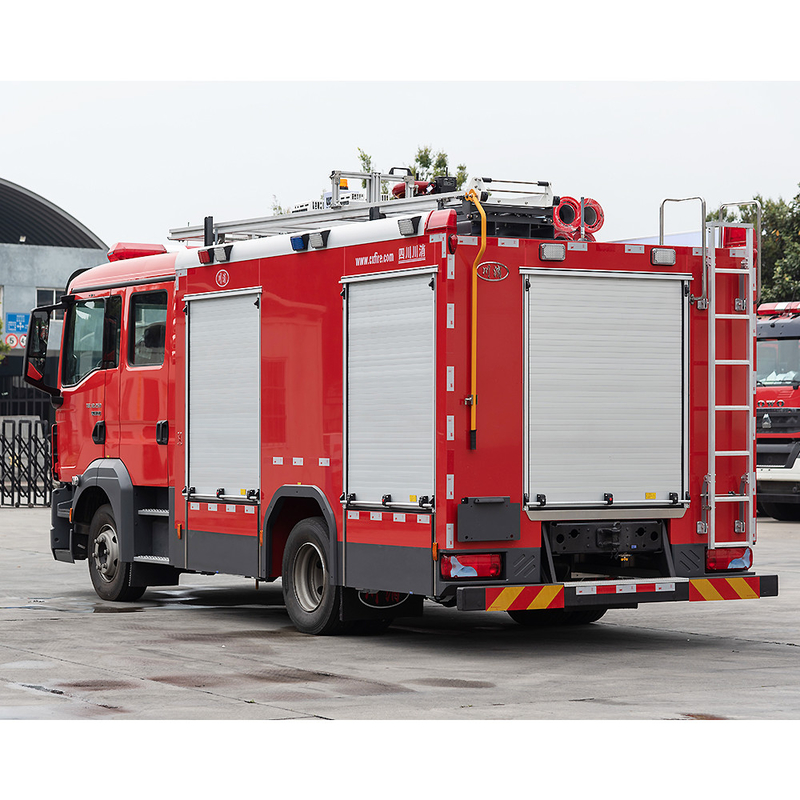

MAN Small Foam Fire Truck China Manufacturer
1. The Whole Fire Truck
- Model: SXF5122GXFPM30
- Overall Dimension: 6950mm×2430mm×3300mm
- Full Load Weight: 11500kg
- Number of the Crew: 6 (include driver)
- Max. Speed: 90km/h
- Emission standard: Euro VI
- Capacity: 2500L Water & 500L Foam, PP composite material liquid tank
- Fire pump flow rate: 60L/s @ 10bar
- Fire monitor: 48L/s flow rate, 70m shoot range
2. Main Components of Fire Truck
| 2.1 | Fire Pump | |
| 2.1.1 | Brand |
Ziegler |
| 2.1.2 | Model |
CB10/60-Z |
| 2.1.3 | Rated Flow Rate | 60L/s @ 10bar |
| 2.1.4 | Vacuum Pump | Electric Vacuum Pump |
| 2.1.5 | Water diversion form | Scraper type |
| 2.1.6 | Suction Height | 3m |
| 2.1.7 | Priming Time | ≤60s |
| .1.8 | Location | Rear-mounted |
| 2.2 | Fire Monitor | |
| 2.2.1 | Brand |
Ziegler |
| 2.2.2 | Model |
PLKD8/48-Z |
| 2.2.2 | Flow Rate | 48L/s @ 10bar |
| 2.2.3 | Shoot Range | Water≥70m, Foam≥60m |
| 2.2.4 | Location | On the top of the tank |
| 2.2.5 | Control Manner | Manual |
| 2.2.6 | Horizontal Rotation Angle | 0°~330° |
| 2.2.7 | Pitch Rotation Angle | -15°~60° |
| 2.3 | Liquid Tank | |
| 2.3.1 | Capacity | Water 2500L, Foam 500L |
| 2.3.2 | Material | PP composite material and Never Rust |
| 2.3.3 | Structure | 2 Tank Manhole; 2 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 foamtank Drain Outlets with Valves; 1 tank Drain Outlets with Valves. |
3. Control Panel for Fire Fighting System
3.1 Various types of control modules can be installed according to the vehicle configuration, and all fire-fighting components are fully electronically controlled, using PLC intelligent control; all buttons, switches and indicators on the control panel are marked with English signs; prominent locations are provided with piping layout and Brief operating instructions. The panel adopts a waterproof and dust-proof design mode, and the protection level can reach IP56.
3.2 Language: English
