Detail Information |
|||
| Dimensions: | 6760×1920×2980mm | Weight: | 6800Kgs With Full Load |
|---|---|---|---|
| Chassis: | ISUZU 4*2 Chassis | Engine Power: | 88Kw |
| Cabin: | Double Row Cabin With 5 Seats | Superstructure: | Aluminum Alloy Welded Structure |
| Liquid Tank: | 1500L Water+500L Foam; PP Material | Fire Pump: | 30L/s At 10bar |
| Fire Monitor: | 32L/s At 10bar With 50m Shoot Range | Painting: | Red Color, U.S. PPG Brand |
| High Light: |
ISUZU Small Fire Truck, Small Fire Truck with 2000 Liters, 88Kw Small Fire Truck |
||
Product Description

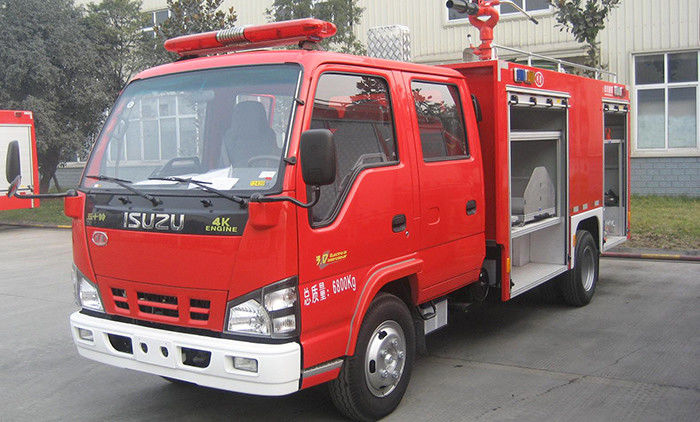

1. ISUZU Small Fire Truck with 2000 Liters Liquid Tank and Double Row Cabin
2. Brief Introduction: The fire engine SXF5070GXFPM20 is flexible and quick response, and can be widely used in different fire departments. It can quickly reach the scene to extinguish the initial fire. They are very ideal equipment for fire bridages.
3. Technical parameters of the whole vehicle
|
No. |
Main Items |
Technical Parameters |
|
3.1 |
Model |
SXF5070GXFPM20 |
|
3.2 |
Dimensions |
6760×1920×2980mm |
|
3.3 |
Full Load Weight |
6800kgs |
|
3.4 |
Number of the Crew |
5 (include driver) |
|
3.5 |
Max. Speed |
90km/h |
|
3.6 |
Capacity |
1500L Water+500L Foam; PP Material |
|
3.7 |
Flow rate |
30L/s @ 10bar |
|
3.8 |
Roof Fire monitor |
32L/s flow rate, 55m shoot range |
|
3.9 |
Painting |
Red Color, U.S. PPG |
4. Superstructure
|
No. |
Main Items |
Technical Parameters |
|
4.1 |
Cabin |
|
|
4.1.1 |
Structure |
Double row cabin with 4 doors |
|
4.1.2 |
Seats |
2+3, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats |
|
4.2 |
Sub-frame |
|
|
4.2.1 |
Material |
High-strength rectangular tube made of special steel |
|
4.2.2 |
Performance |
The liquid tank and the sub-frame are connected by elastic connecting seats |
|
4.3 |
Compartment |
|
|
4.3.1 |
Material |
High-strength aluminum alloy profiles (Never Rust) |
|
4.3.2 |
Structure |
Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
|
4.4 |
Roller Shutter Door |
|
|
4.4.1 |
Material |
Aluminum alloy profiles with anodized surface |
|
4.4.2 |
Structure of Roll-Up Doors |
With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors. |
5.1.1 Manufacturer: Optional
5.1.2 Type : CB10/30
5.1.3 Flow rate: 30 L/s at 1.0MPa
5.1.4 Water diversion form: Automatic
5.1.5 Water absorption depth: 7m
5.1.6 Water diversion time: ≤35s
5.1.7 Installation form: rear-mounted
5.2.1 Manufacturer: CXFIRE
5.2.2 Model: PL32
5.2.3 Flow rate: ≥32L/s
5.2.4 Range: ≥50m
5.2.5 Horizontal rotation angle: 360°
5.2.6 Installation position: top of the carriage
5.3.1 Capacity: 1500L Water+500L Foam
5.3.2 Material: PP composite material (Never in Rust)
5.3.3 Structure: Built-in vertical and horizontal anti-oscillation partitions
5.3.4 Type: exposed type
5.3.5 Equipment: 2 Φ450mm inlet hole with quick opening and locking device; 1 overflow/pressure relief device; 2 liquid level sensor; 2 drain port with valve; 2 water injection ports.
