Detail Information |
|||
| Manufacturer: | CXFIRE | Model: | SXF5162TXFQC100 |
|---|---|---|---|
| Chassis: | FAW CA2200J2K2L2TE6Z | Overall Dimensions: | ≤10150mm×2550mm×3700mm |
| Full Load Mass: | ≤16500kg | Number Of Passengers: | 6 People |
| Drive Form: | 6×6 | Max Speed: | 95km/h |
| Power: | 261/1900（kW/rpm） | Warranty: | 2 Years |
| Color: | Fire Red | ||
| High Light: |
Special Fire Truck 95km/h, FAW Special Fire Truck 6×6, All Terrain Fire Truck 6×6 |
||
Product Description

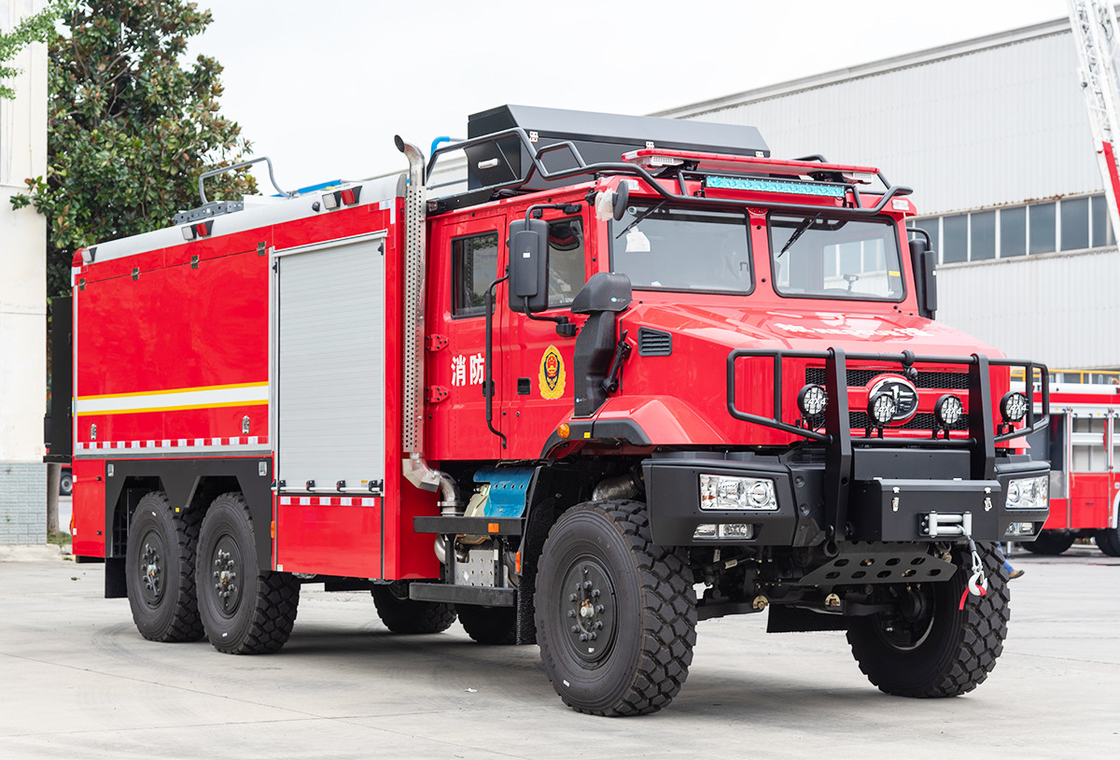

1. FAW Jiefang All-terrain Equipment Fire Truck
- The largest manufacturer of fire trucks in China. Founded in 1963. The main production base is located in Chengdu City, Sichuan Province, covering an area of 200,000 square meters with 600 employees. More than 1,000 fire trucks are produced and sold every year.
- Fast delivery time, global sales network, 24 hours service online.
2. Chassis
| No. | Main Items | Technical Parameters |
| 2.1 | Manufacturer | FAW Car Co., Ltd. |
| 2.2 | Model |
CA2200J2K2L2TE6Z |
| 2.3 | Drive type | 6*6 |
| 2.4 | Wheelbase |
4900mm+1400mm |
| 2.5 | Engine model |
CA6DL6-35E68 |
| 2.6 | Engine type |
CA6DL6-35E68 |
| 2.7 | Rated power |
261/1900(kW/rpm) |
| 2.8 | Gearbox form | Automatic gearbox |
| 2.9 | Fuel tank capacity | 180L |
3. Superstructure
3.1 Cabin
3.1.1 Structure: Double row four-door cab
3.1.2 Seats:Double row seats, seats 1+1+4
3.2 Standardized Sub-frame
3.2.1 Material: High-strength rectangular tube made of special steel
3.2.2 Performance: The liquid tank and the sub-frame are connected by elastic connecting seats
3.3 Compartment
3.3.1 Material: High-strength aluminum alloy profiles (Never Rust)
3.3.2 Structure: Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
3.4 Roller Shutter Door
3.4.1 Material: Aluminum alloy profiles with anodized surface
3.4.2 Structure: With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
3.5 Superstructure Electric Appliance
3.5.1 Warning Light and Siren: Warning light and siren are mounted above cabin. The controller is installed in the driver’s cabin.
3.5.2 Strobe Light: Mounted on the both sides of the compartment
3.5.3 External Lighting: LED lights are mounted on the both sides of the compartment
3.5.4 Roof Lighting: LED lights are mounted on the inside of the roof
3.5.5 Side Indicator Light: Inline yellow warning light is mounted on the side of the compartment
